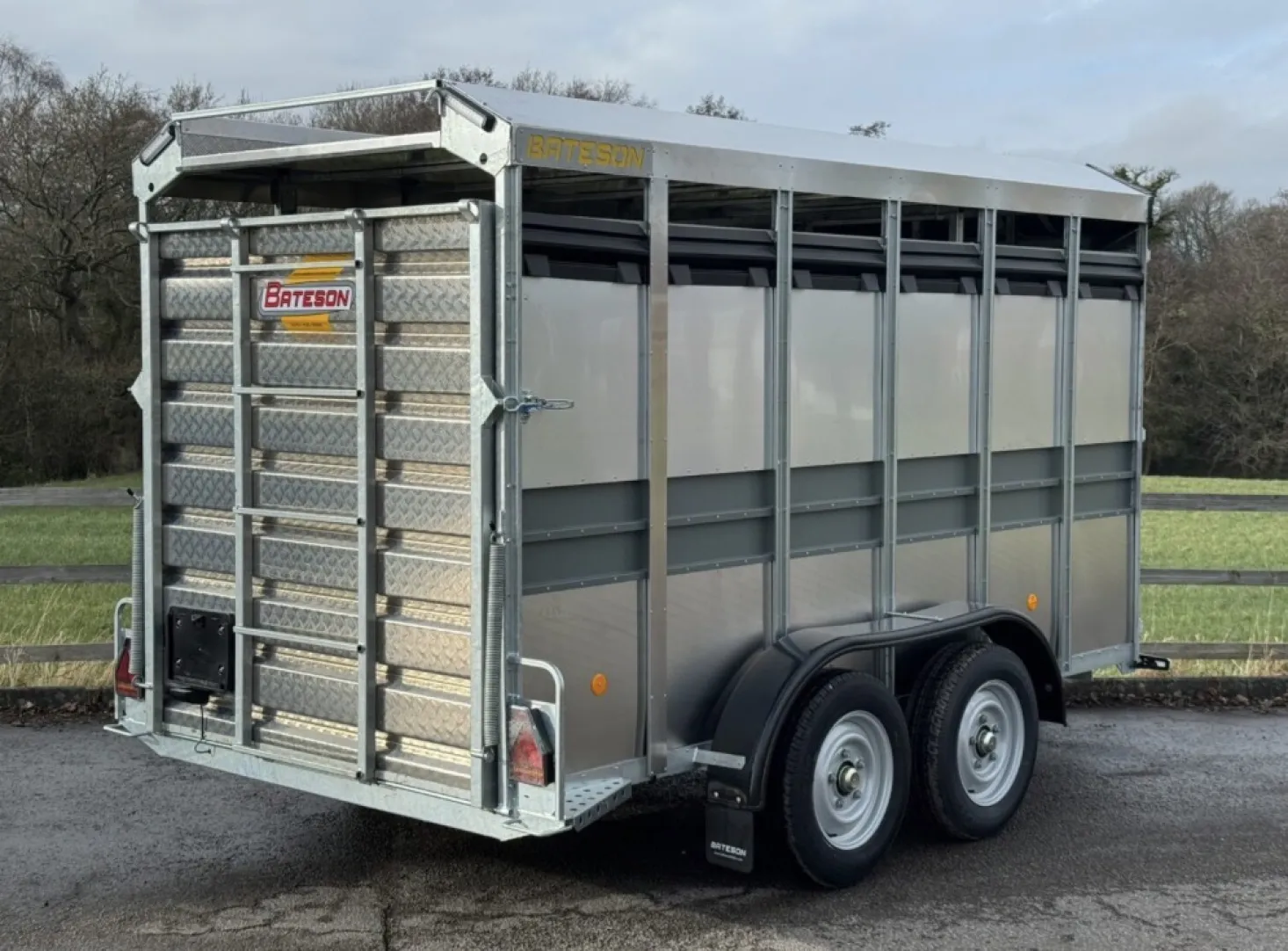

![48Lt livestock](https://courtfarmgarage.co.uk/storage/13611/conversions/01HNFG7GF5XBH066CBYZRGRR2X-catalogue.webp)
![This 48Lt livestock will be available soon. Please call for details](https://courtfarmgarage.co.uk/images/site/badges/soon.png)
Product price information
* Call *
Plus VAT
Description

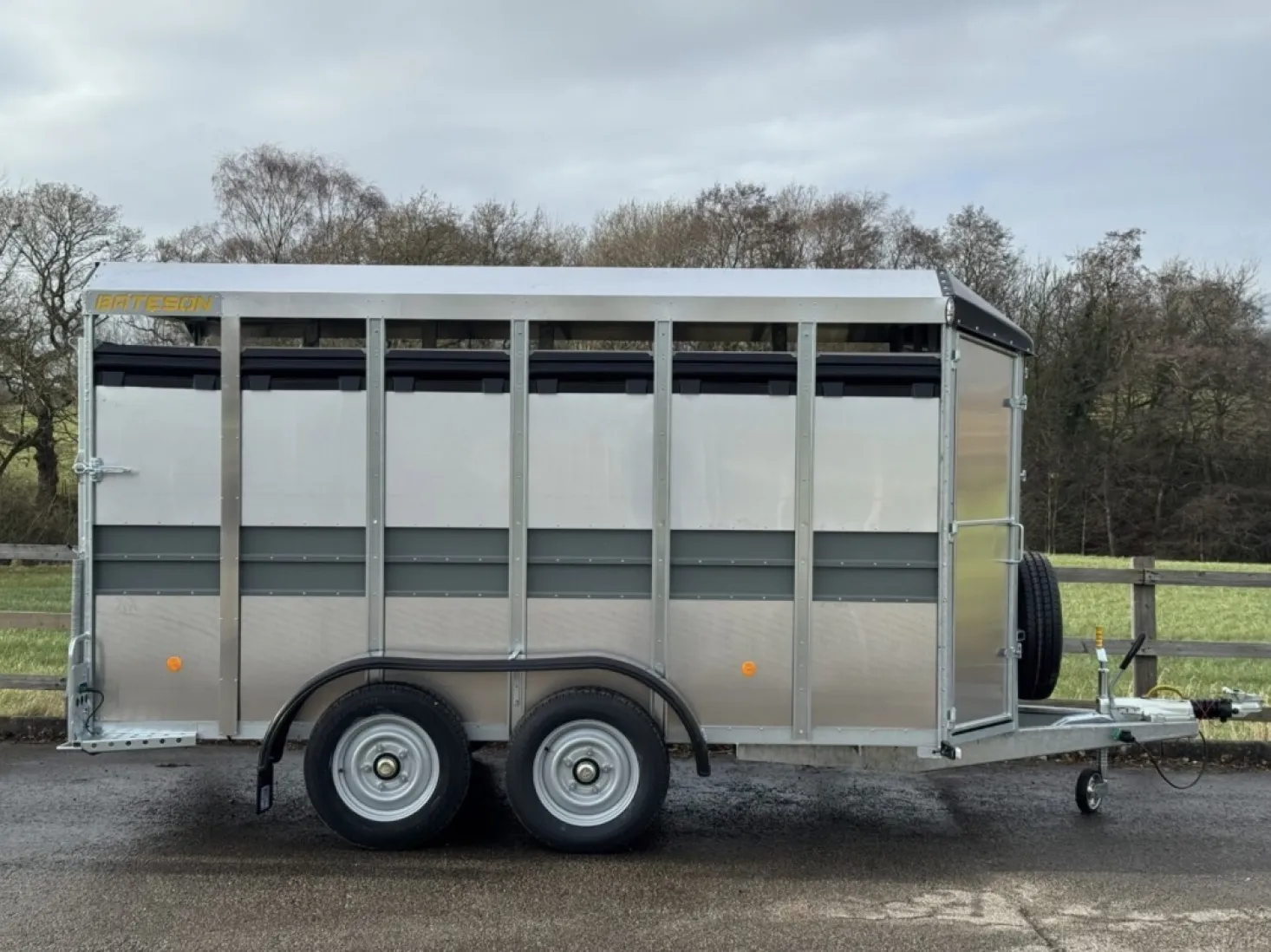

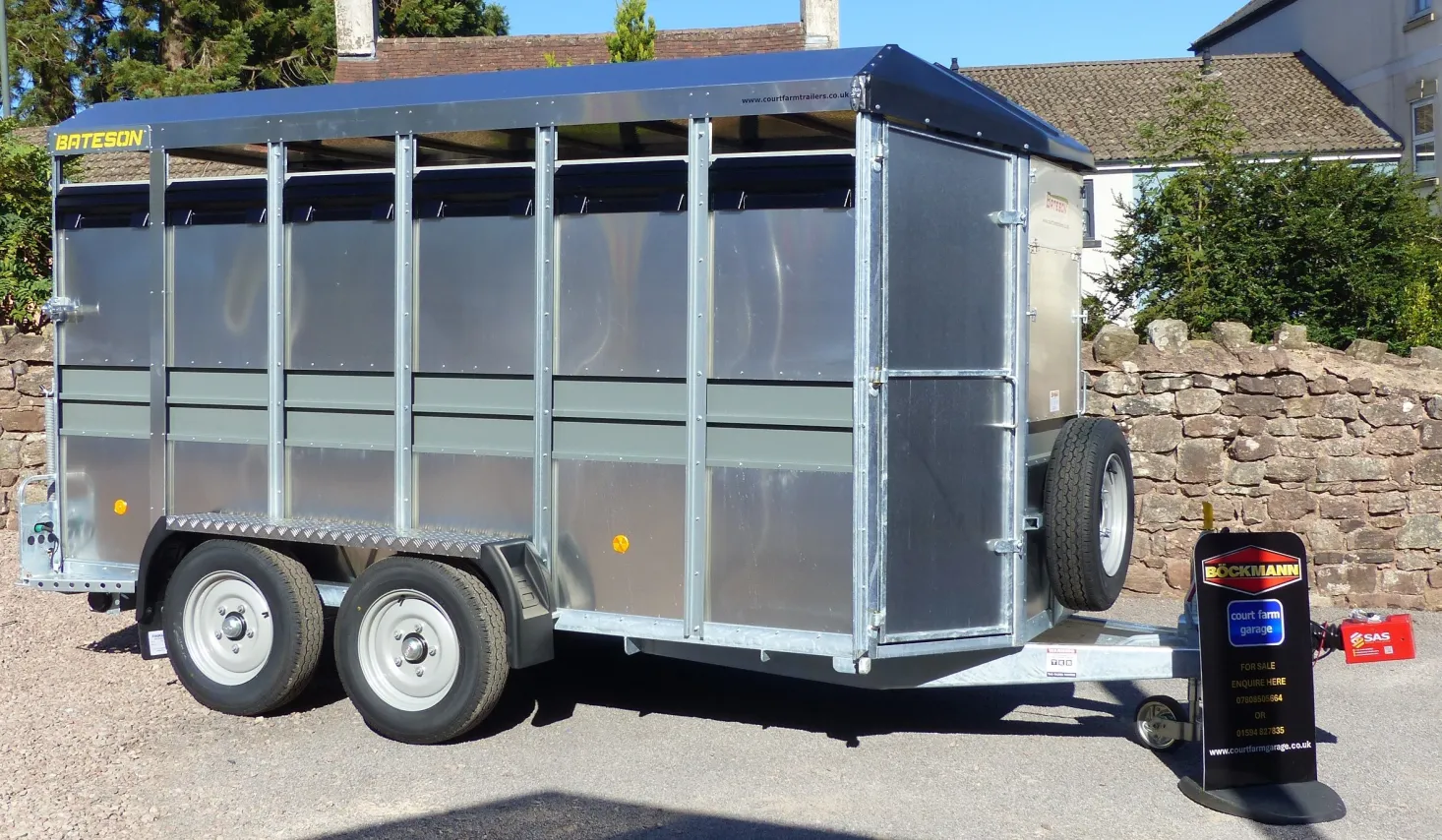

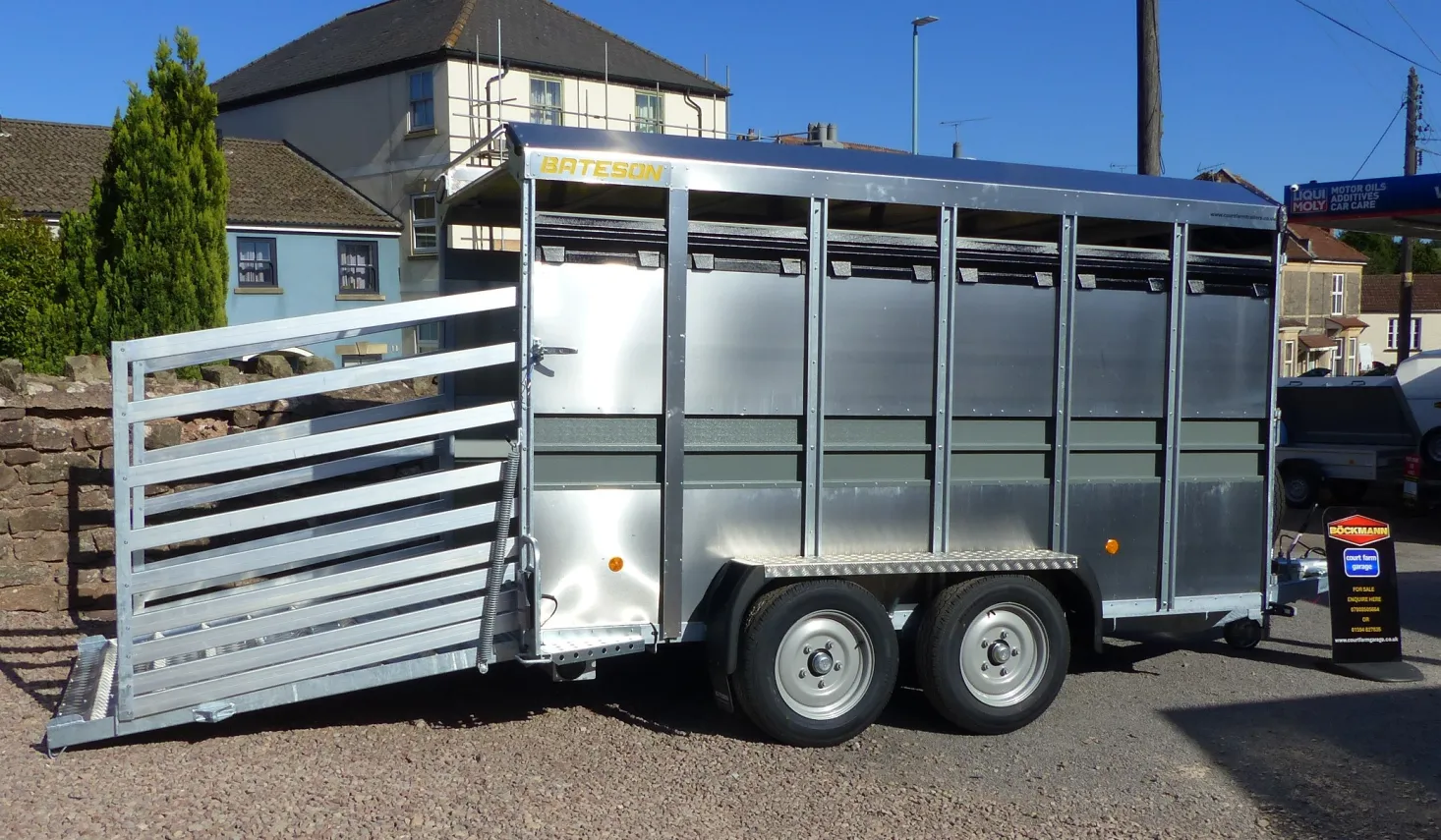

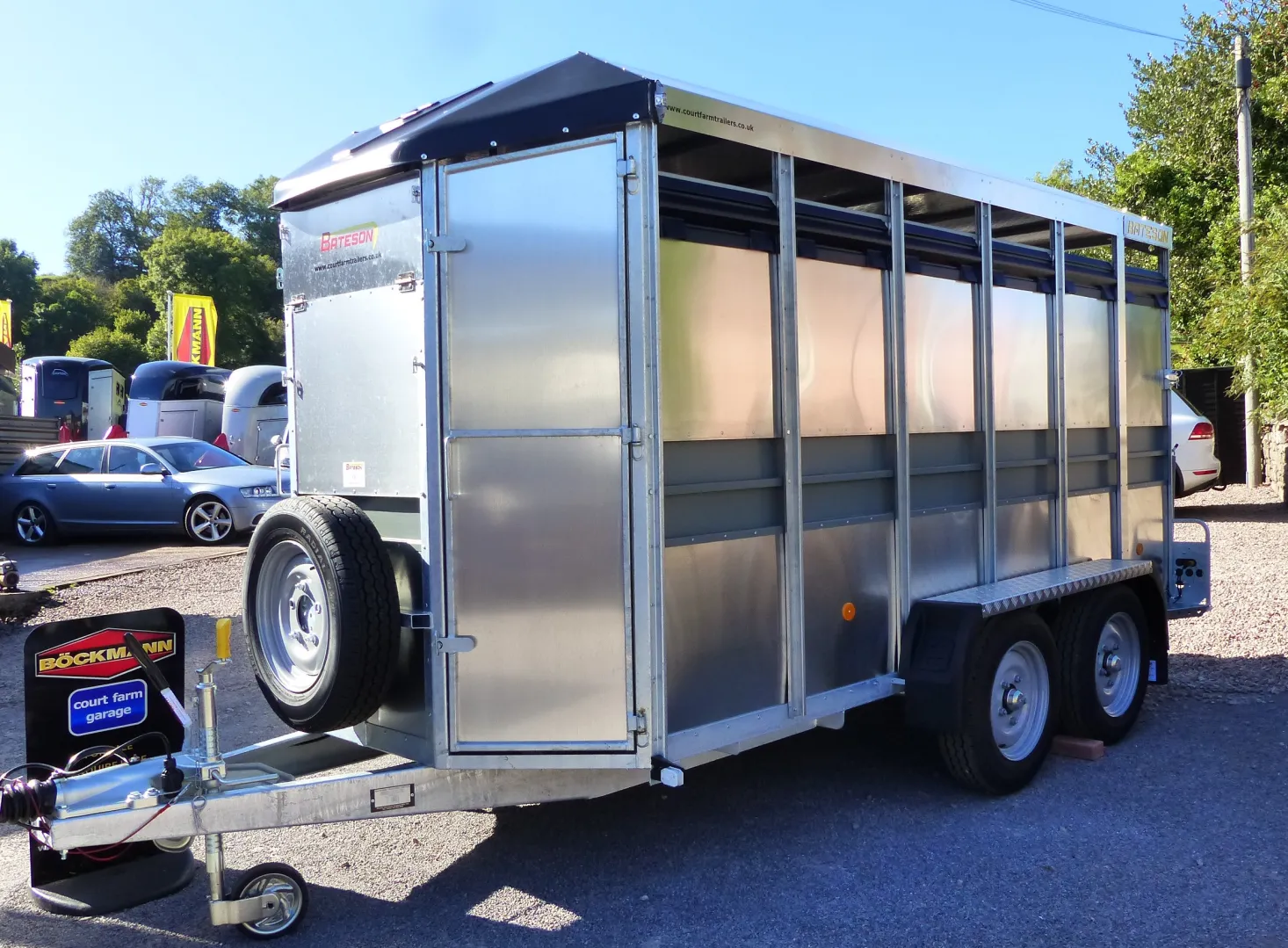

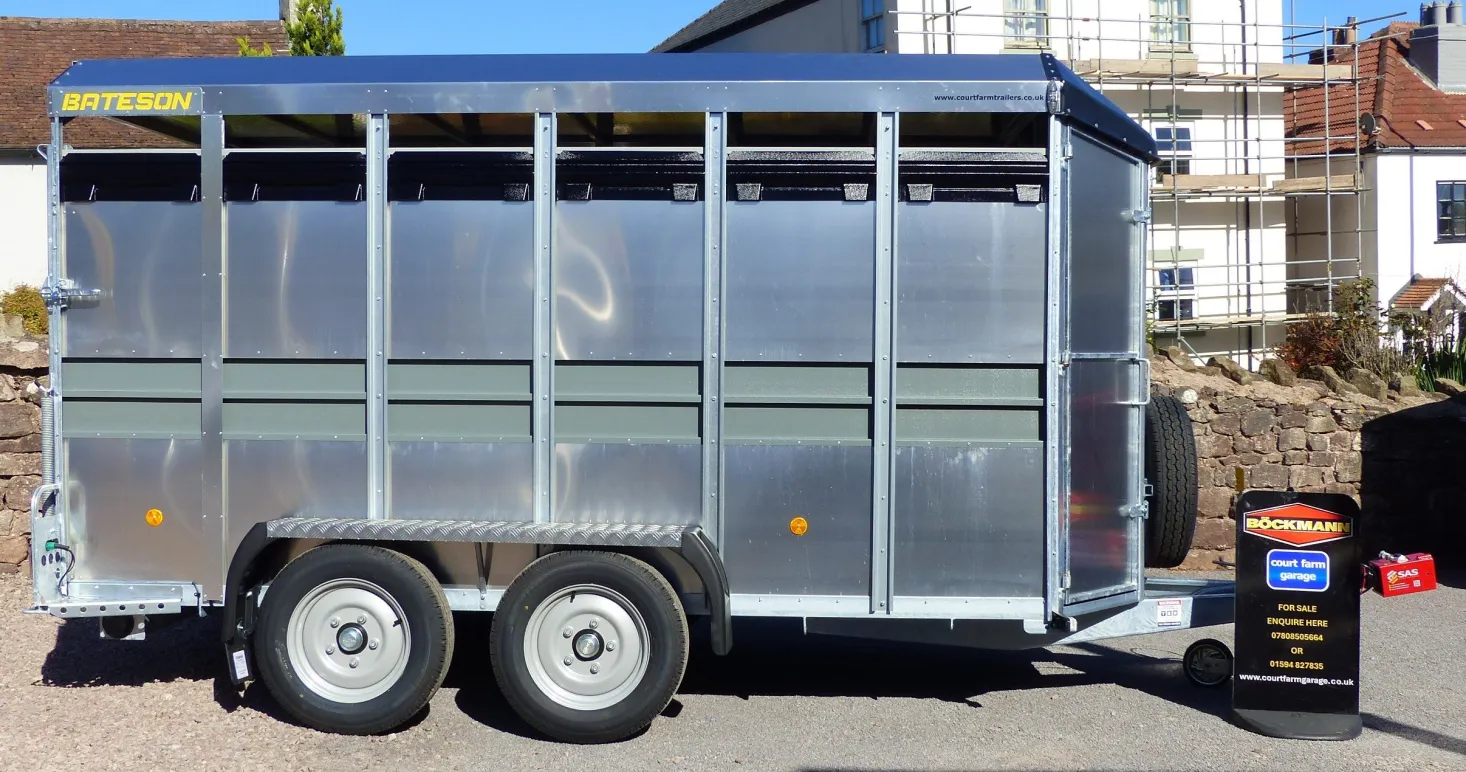

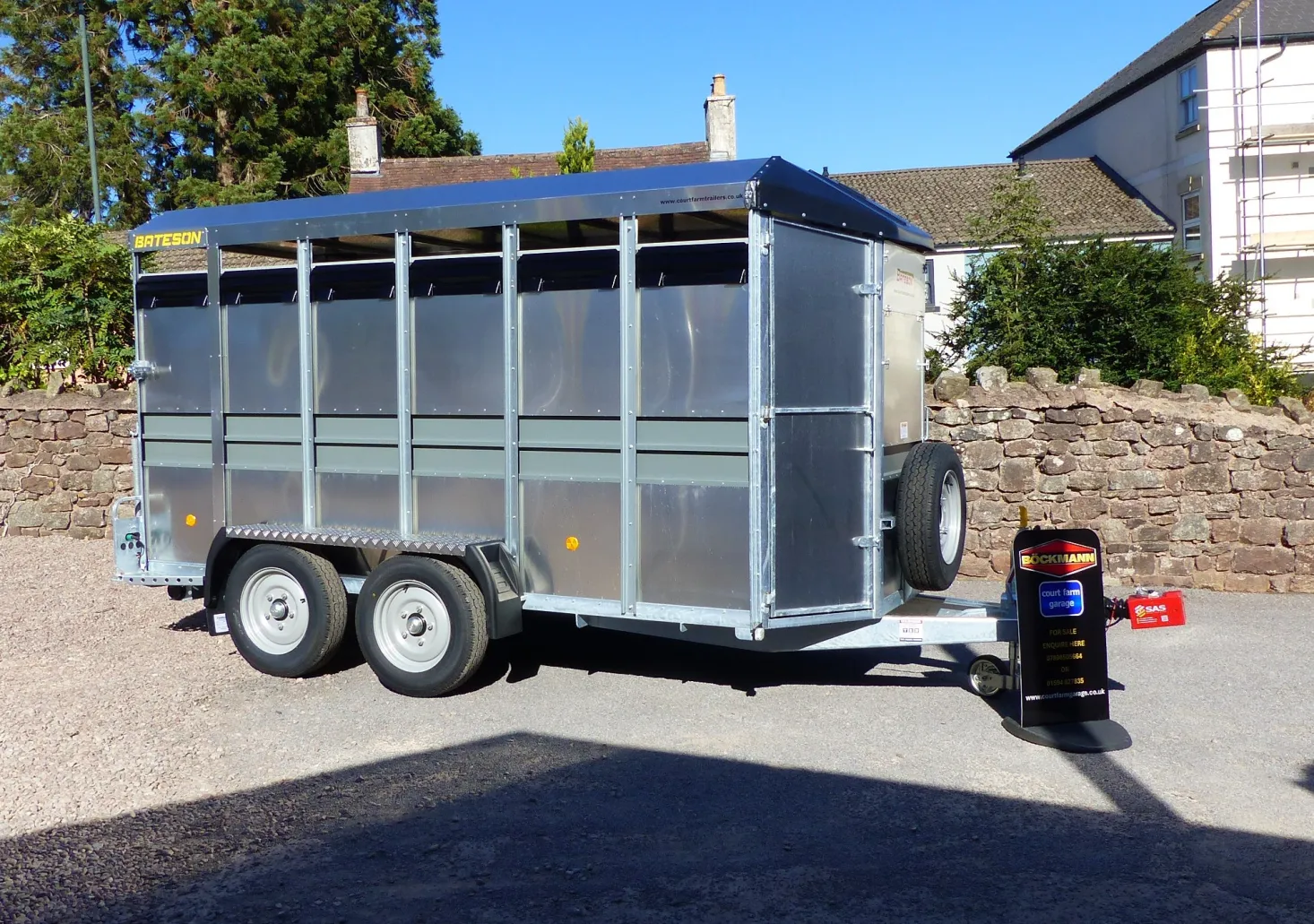

12′ x 5’8 x 6′ Livestock Trailer for use with 4WD and larger vehicles
Model 48LT is a our largest Livestock Trailer fitted with Land Rover size 16″ wheels. We do not make larger models for safety and legal reasons. This trailer loaded with livestock could exceed the 3500kg maximum gross weight that can be towed by a 4 x4. A larger trailer, particularly if fitted with three axles, would weigh much more and would have a corresponding reduction in payload.

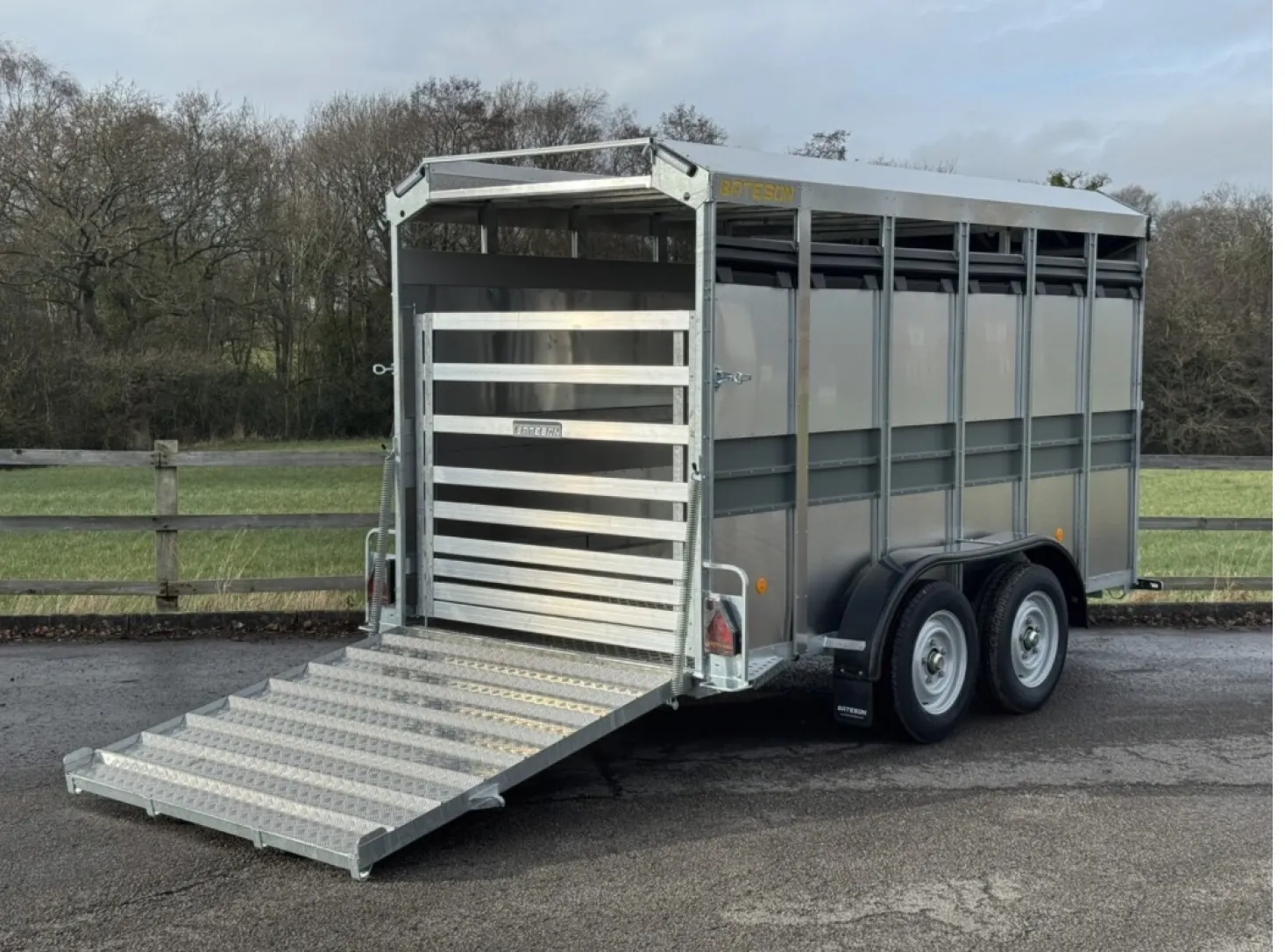

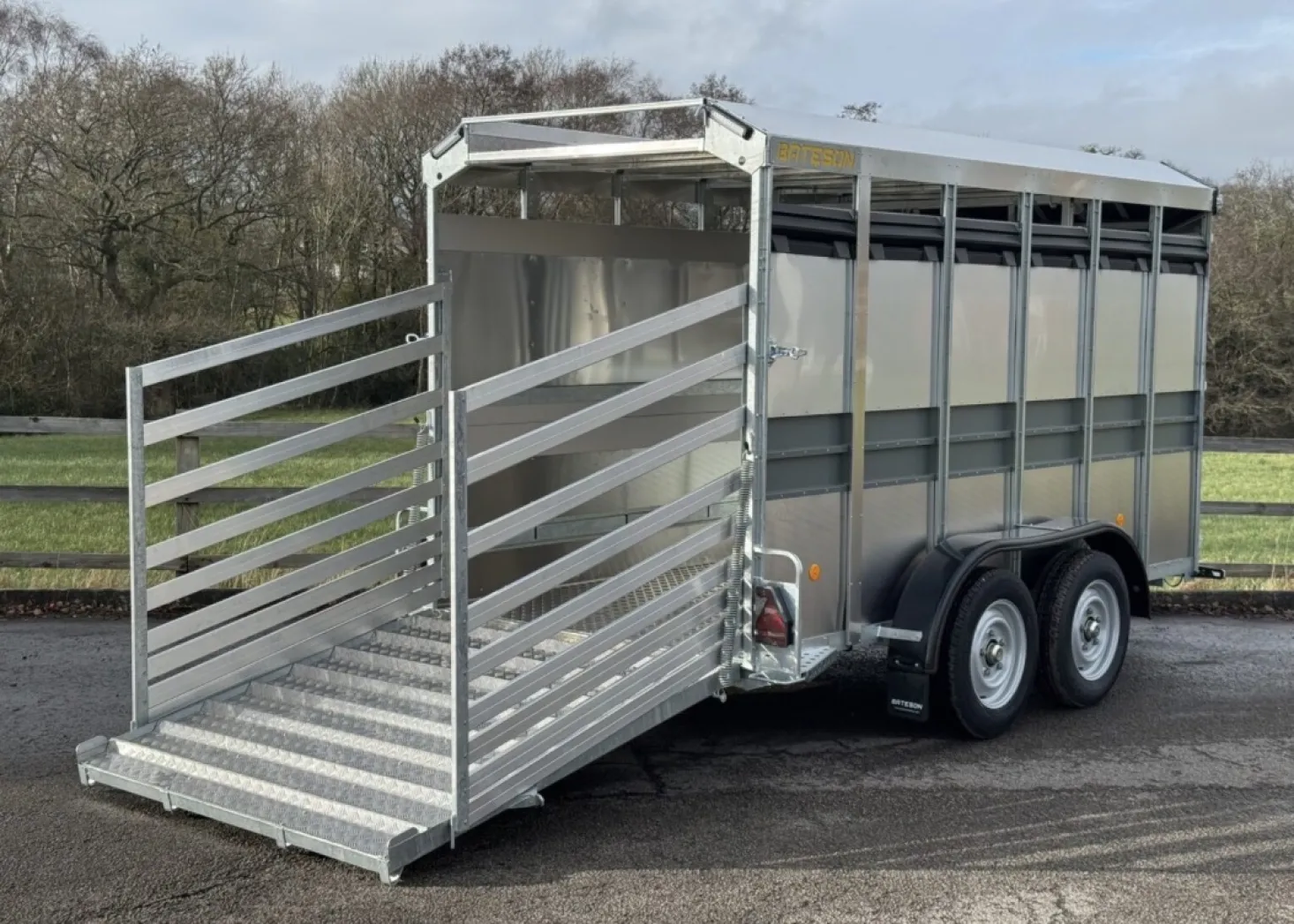

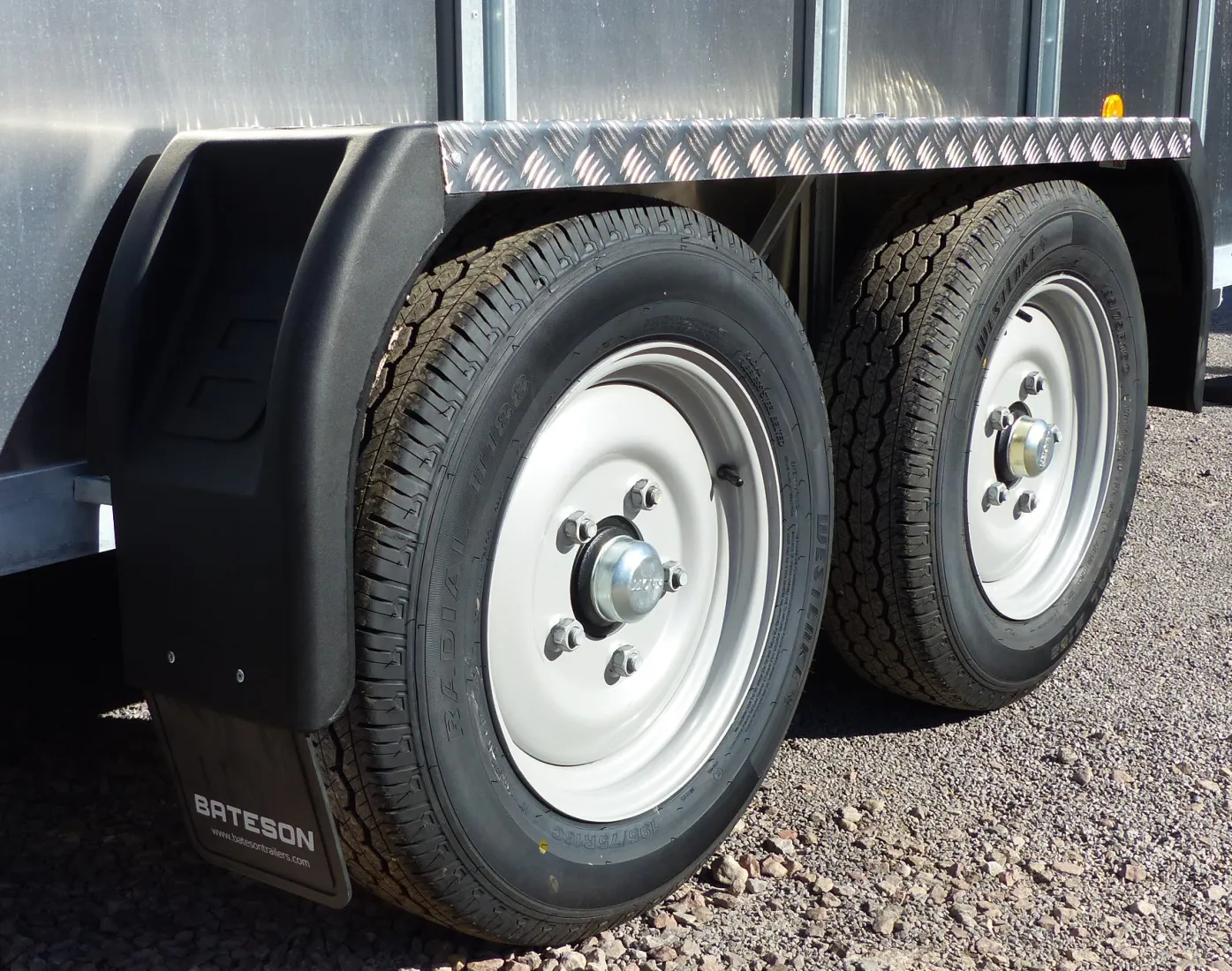

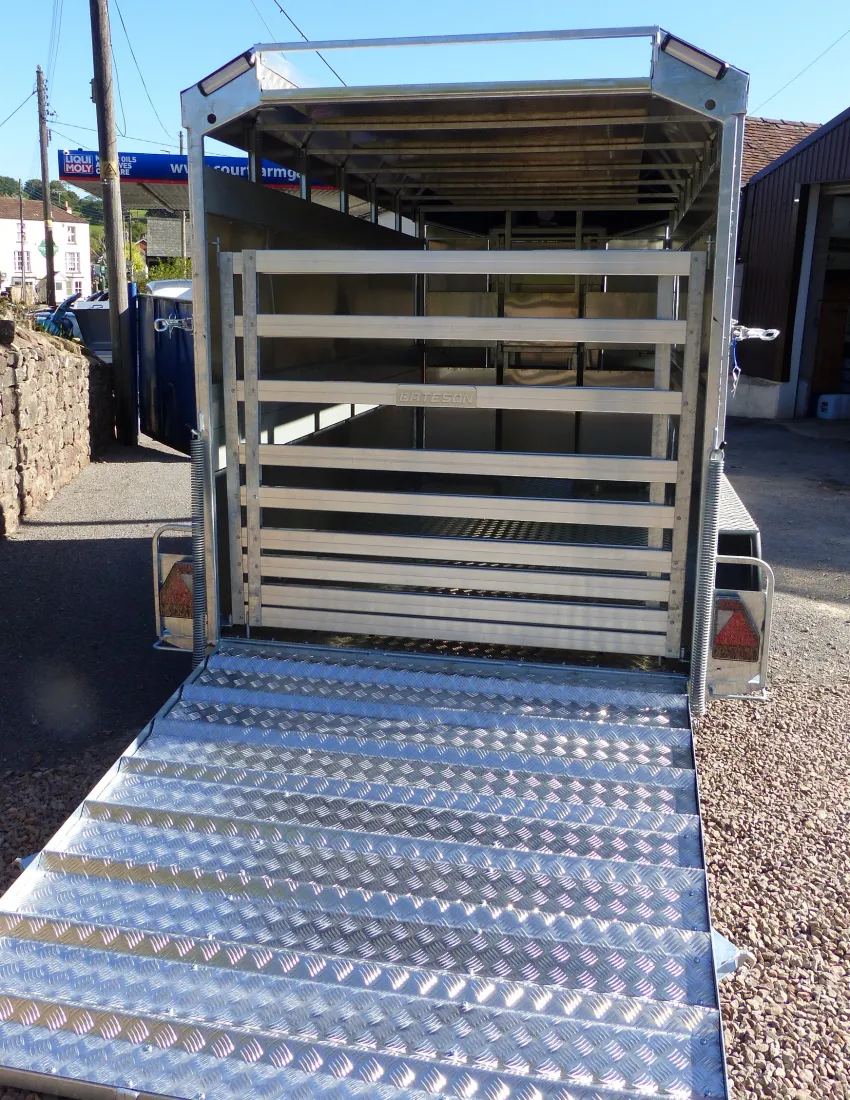

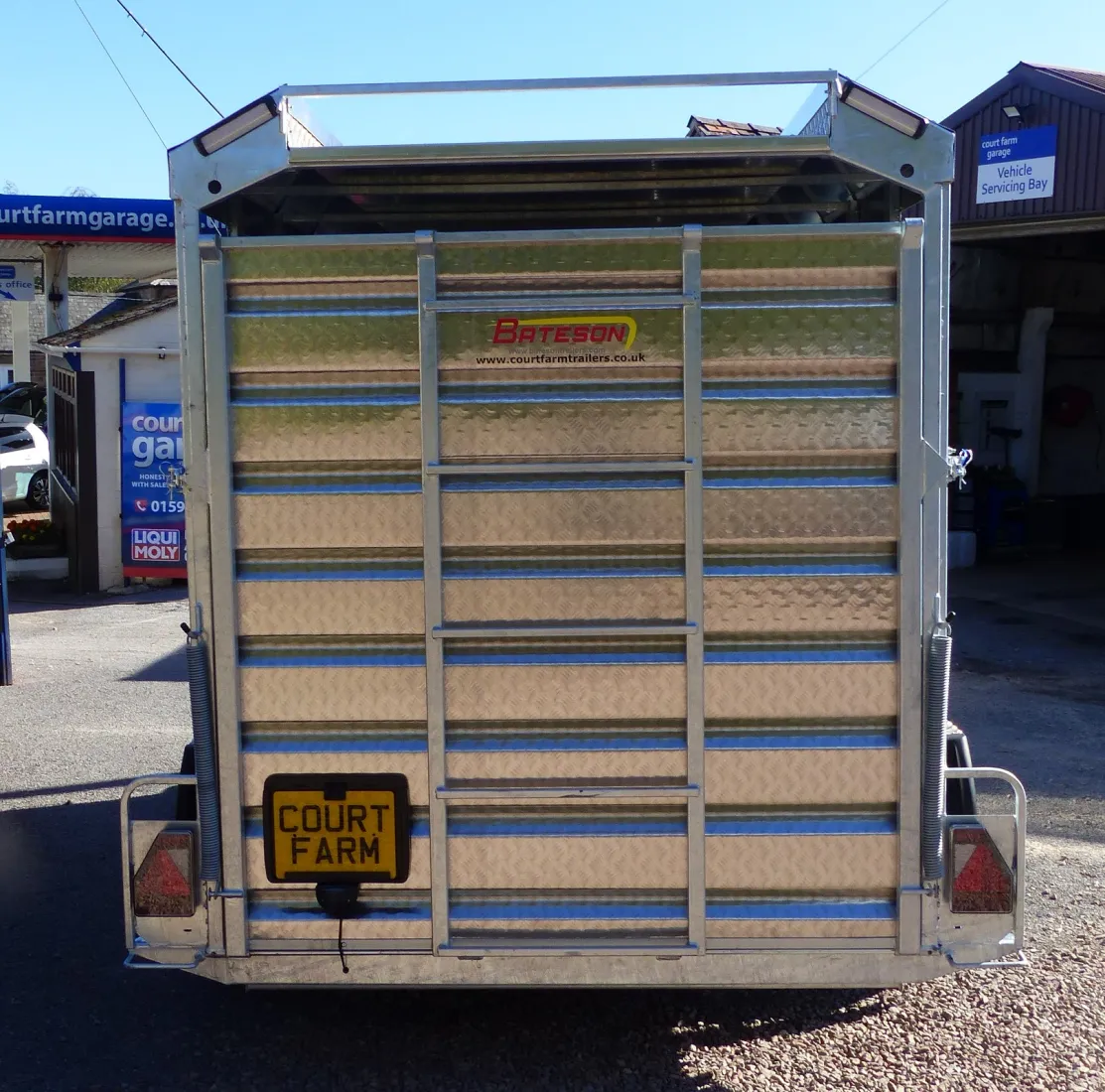

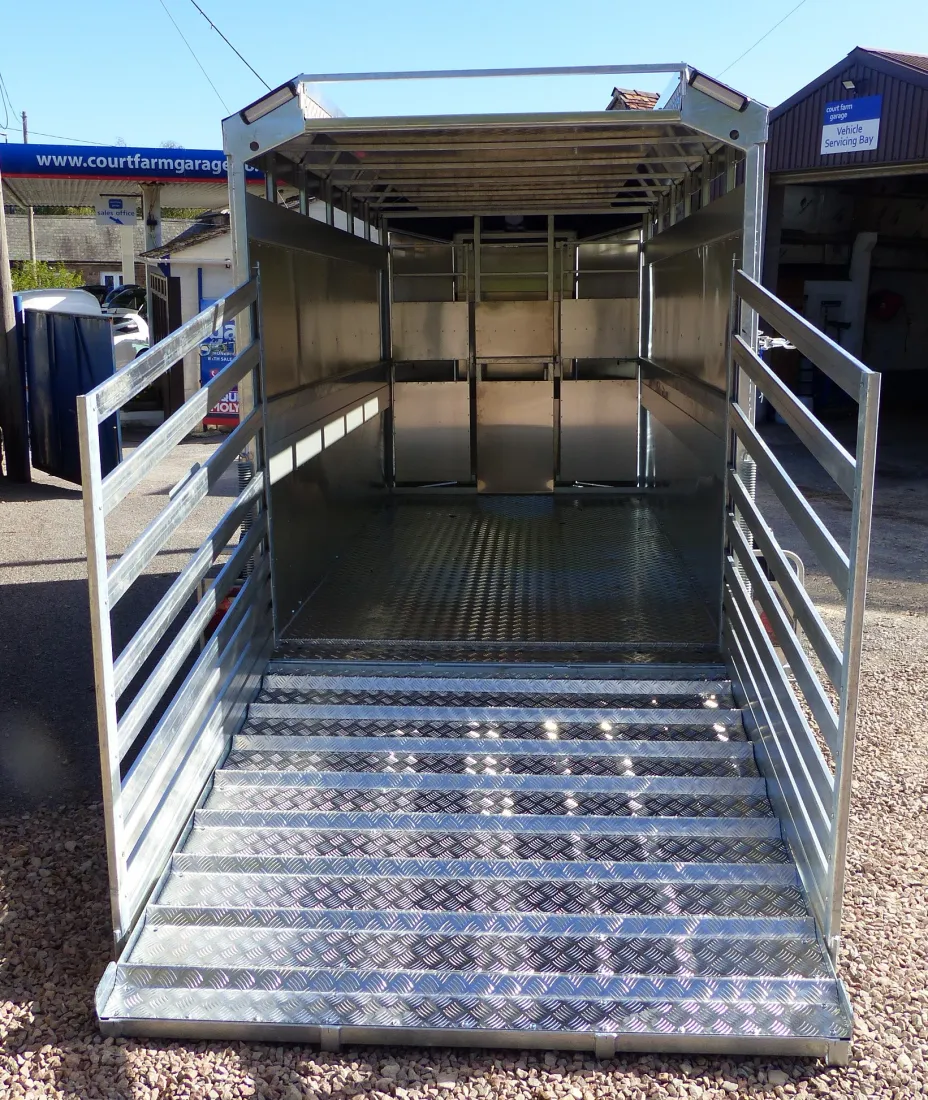

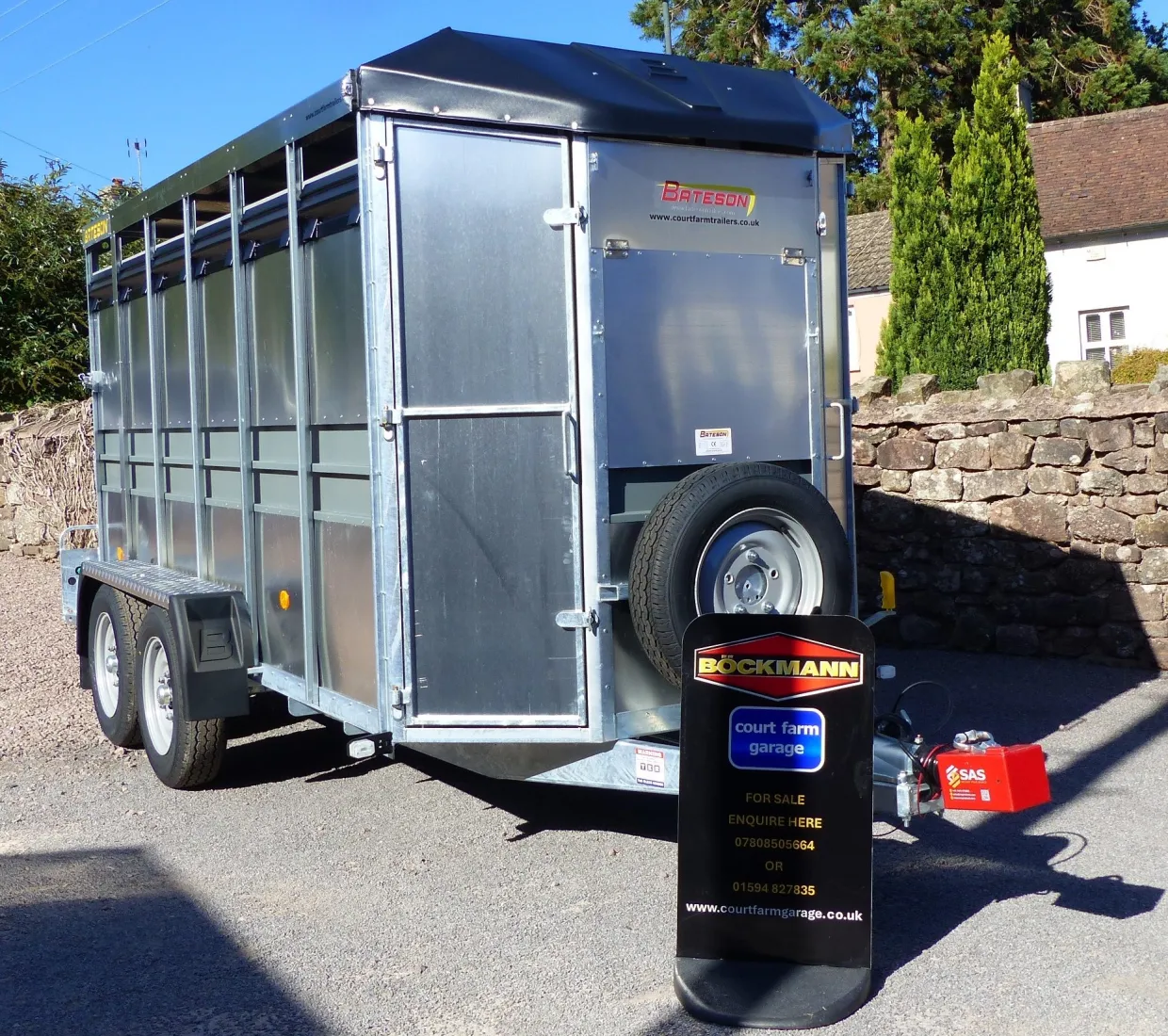

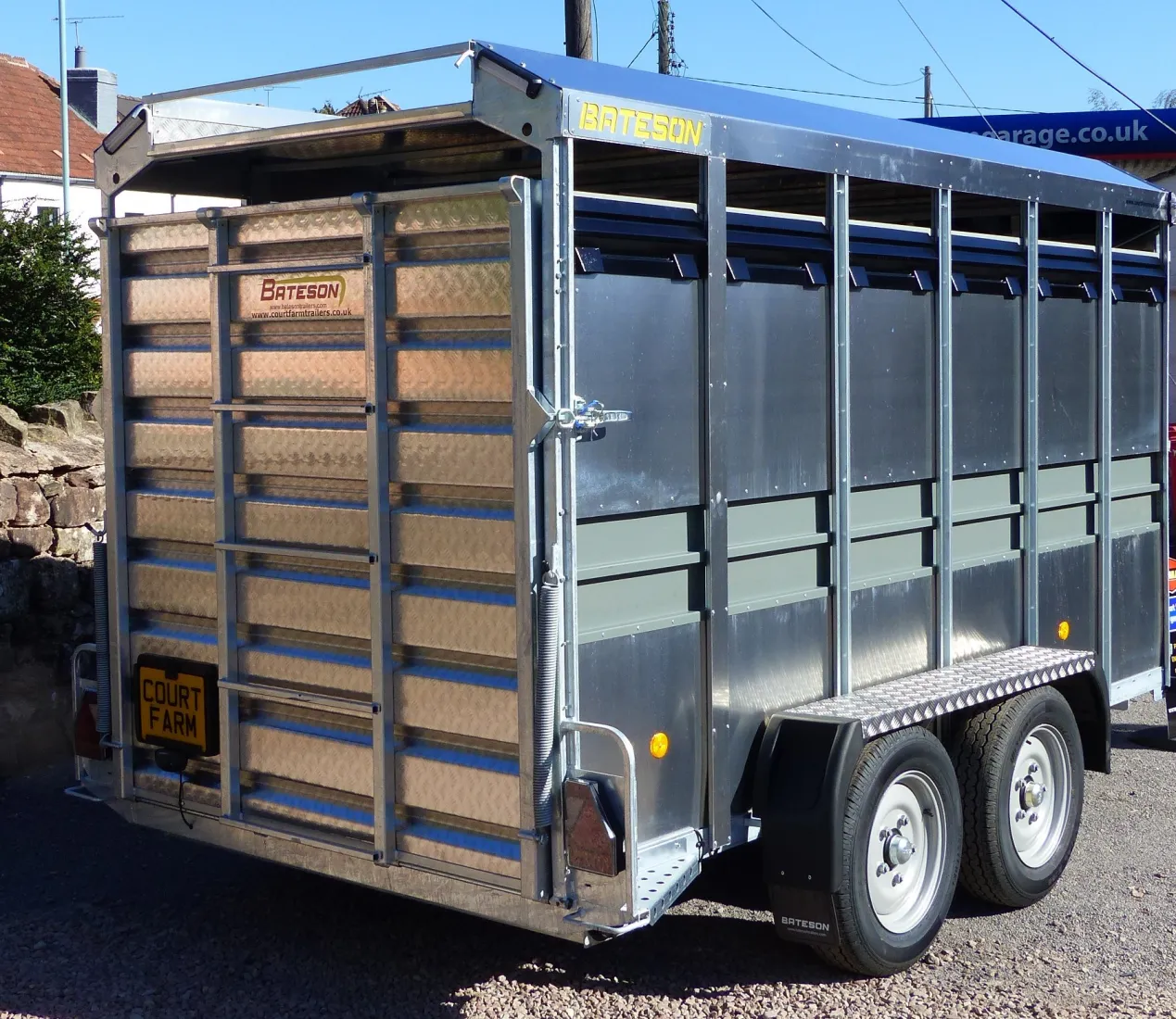

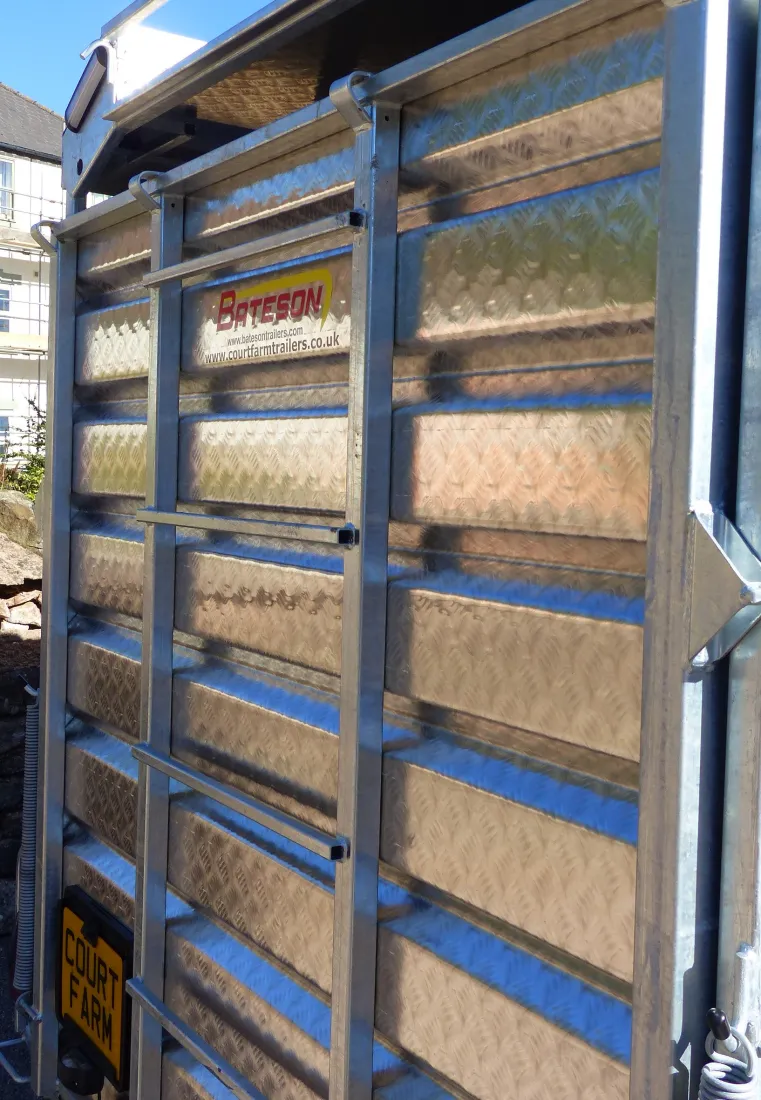

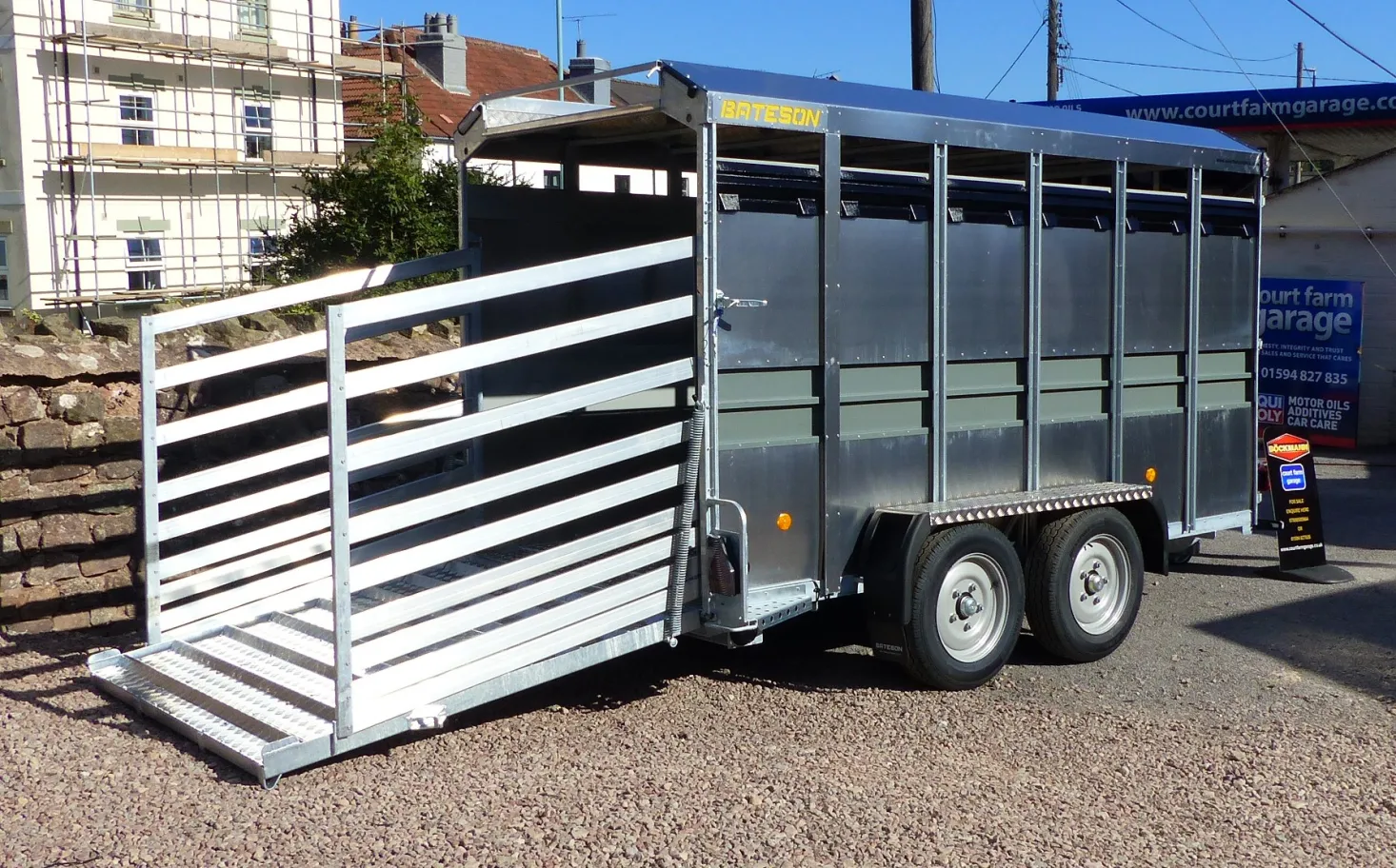

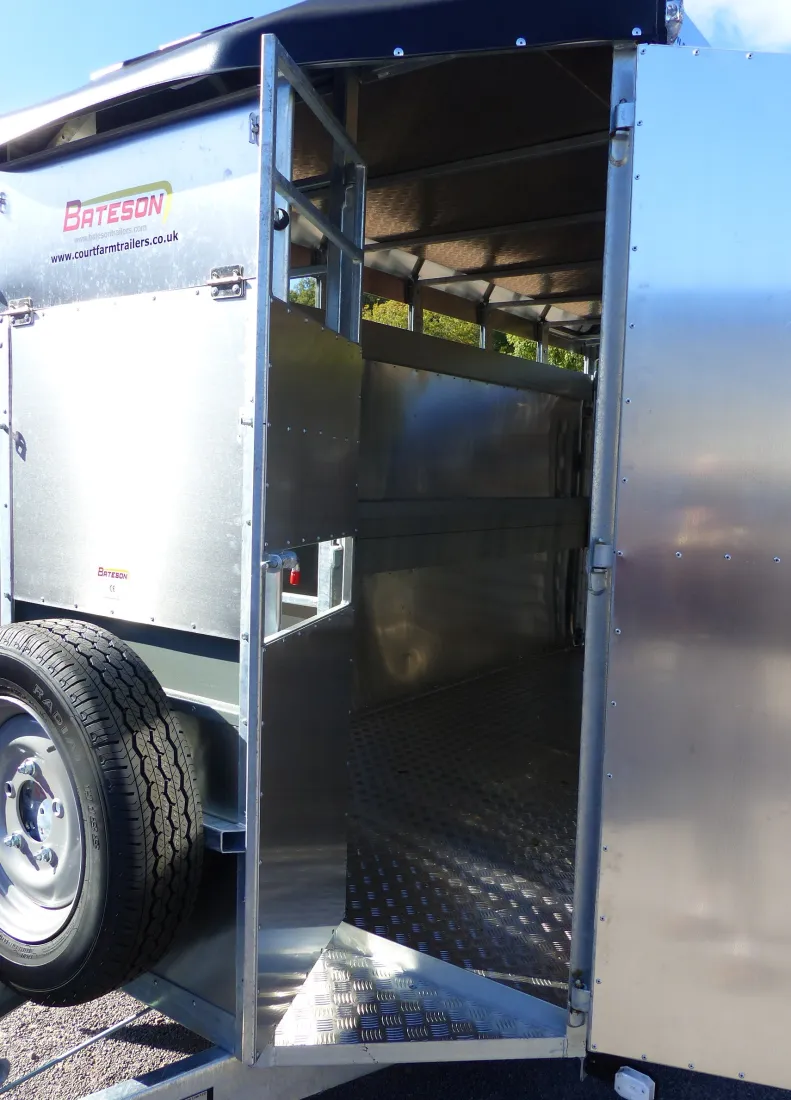

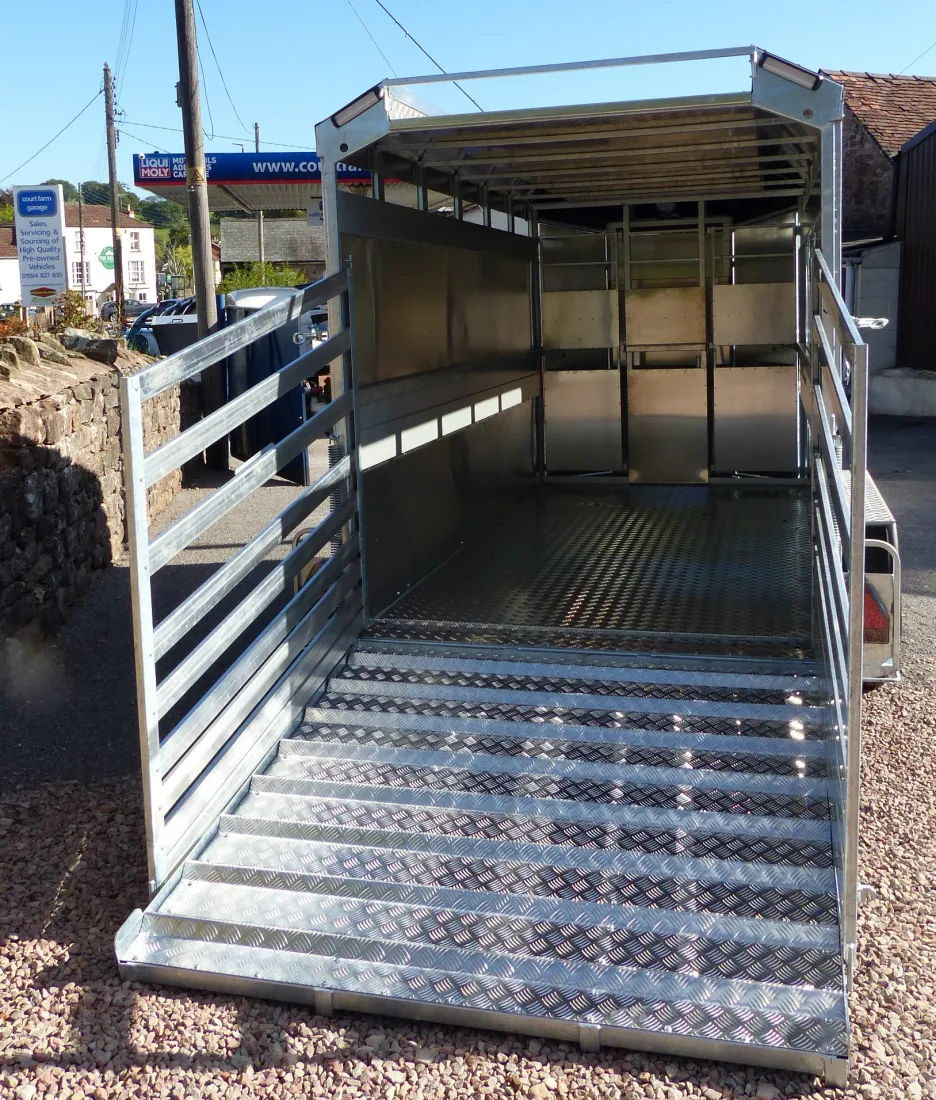

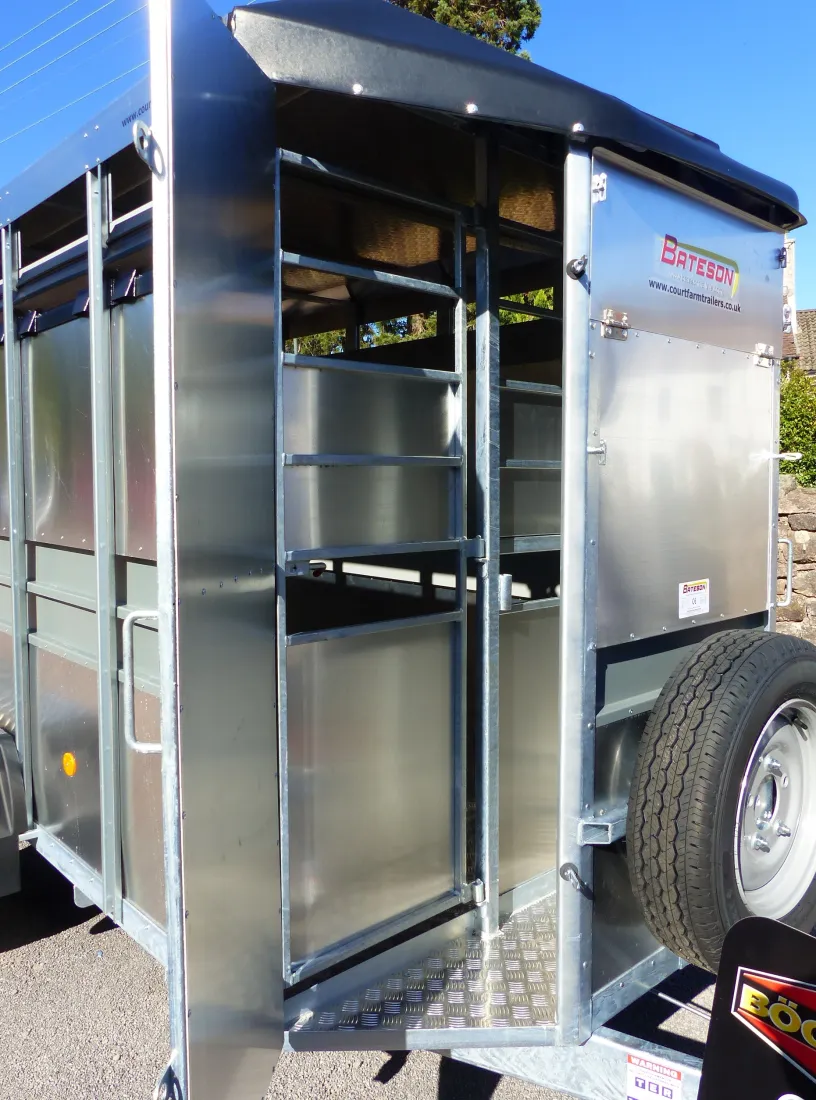

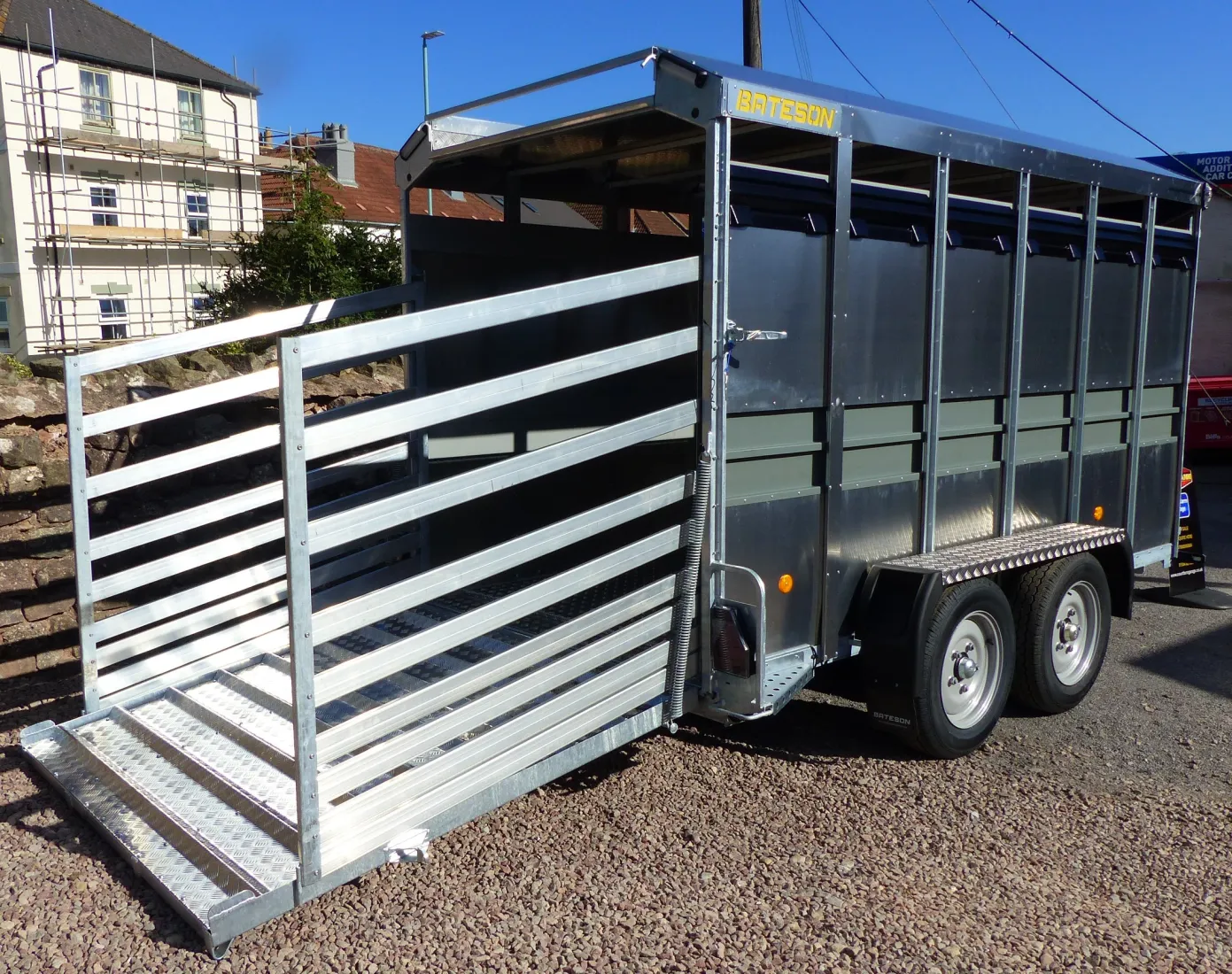

The 48LT is fitted with full width independent suspension axles and auto-reversing brakes. Alloy ramp side gates, side door, front jockey wheel, locking hitch, ramp lifting springs and a spare wheel are all supplied standard.

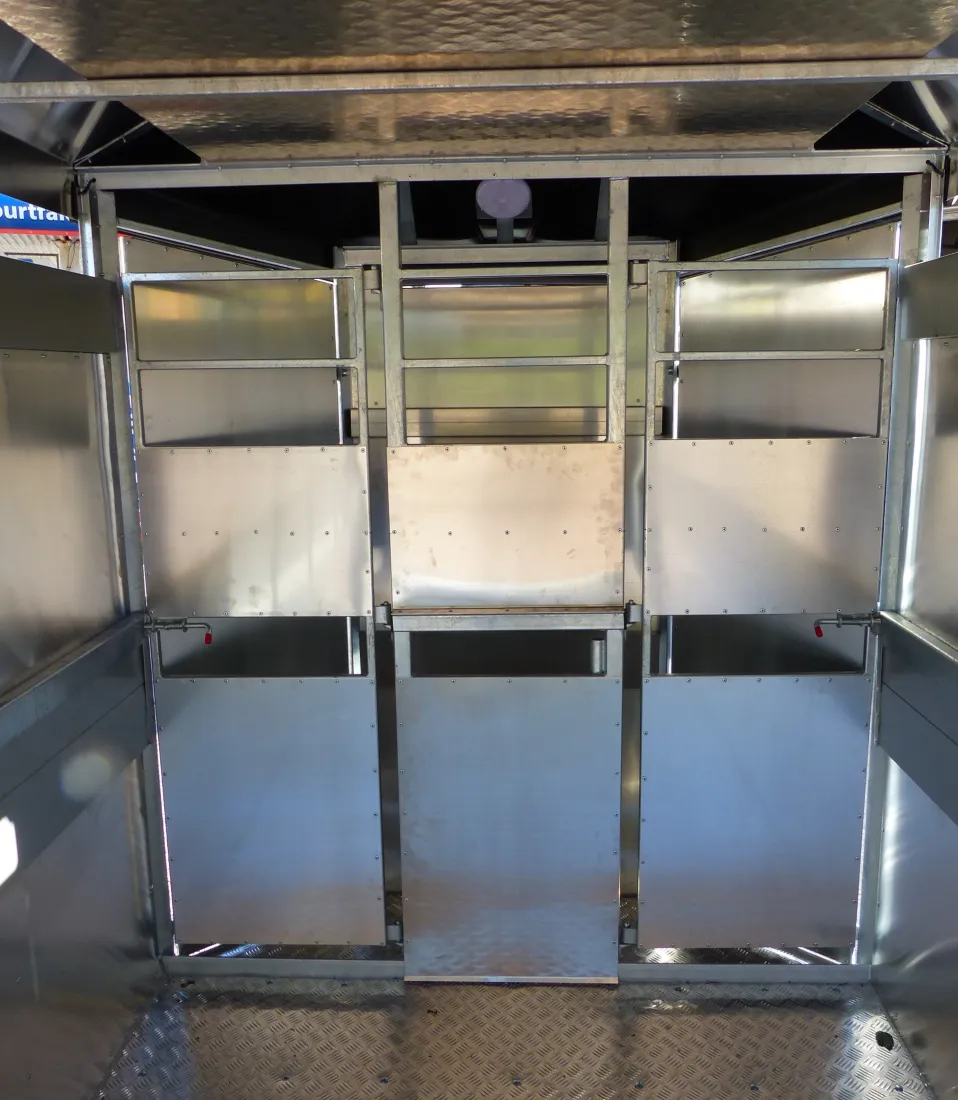

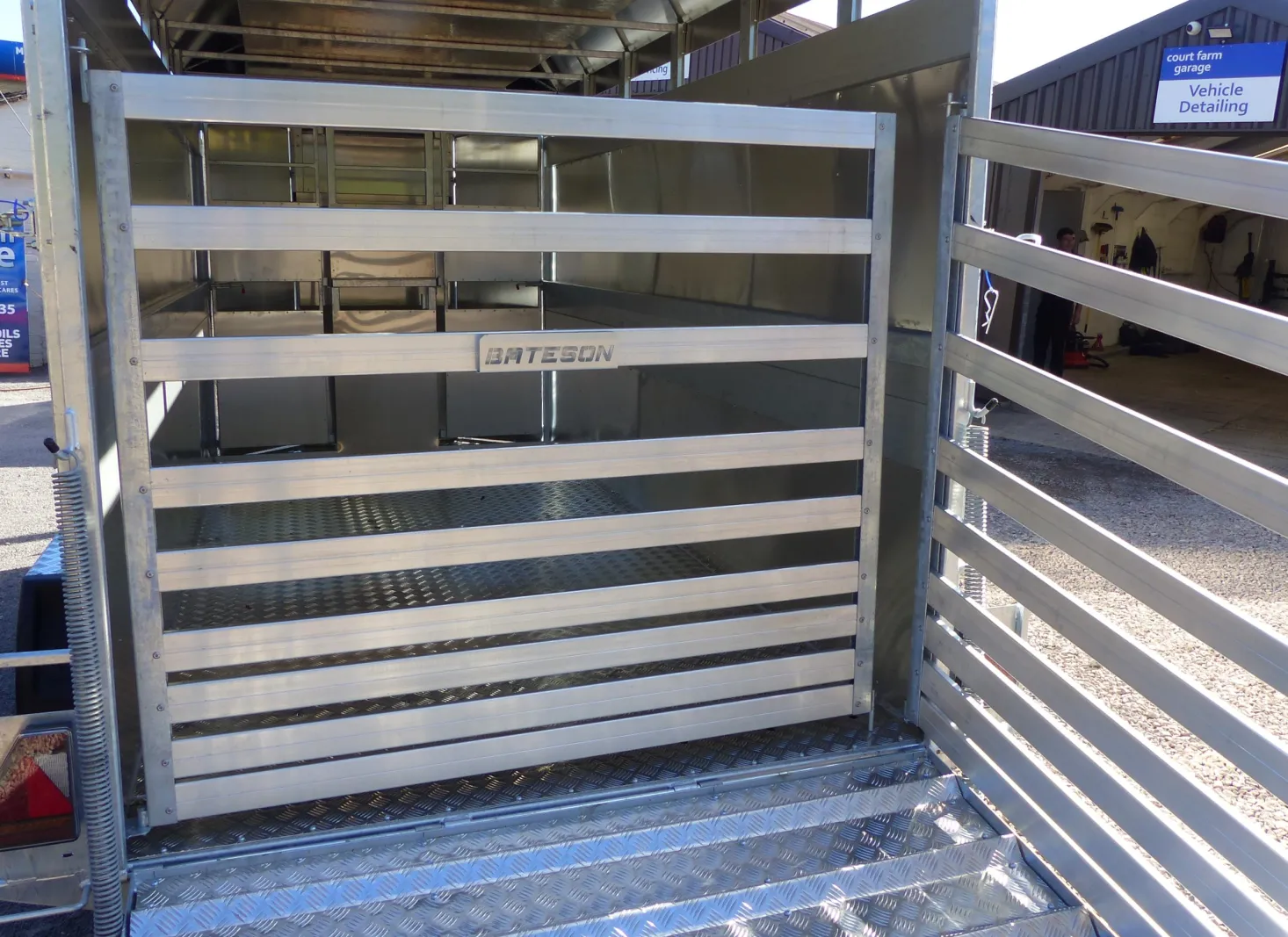

A cross division gate is available as an option. Maximum permitted pen lengths are 12′ for cattle, 10′ for sheep and pigs and 8′ for calves.
Features
Trailer
- Gross Weight
- Unladen weight
- Capacity
- Length
- Width
- Height
- Internal Length
- Internal Width
- Internal Height
- Number of Axles
- Tyre Size
- Tow Ball Height
Trailer Exterior
- Mudguards
- Rear Wall
- High Loading Volume
Trailer Features
- Trailer Spare Wheel
- Jockey Wheel
Technical Specifications
- Colour
- Axles
- Axles
- Gross Weight
- 3100 kg
- Unladen Weight
- 950 kg
- Capacity
- 2150 kg
- Overall Length
- 5000 mm
- Overall Width
- 2270 mm
- Overall Height
- 2320 mm
- Internal Length
- 3600 mm
- Internal Width
- 1710 mm
- Internal Height
- 1800 mm
- Tyre Size
- 205 x 16
- Tow Ball Height
- 500 mm
